Note: This product includes digital files only for the Project IJ Rock Sliders build project. No physical parts are included.

These files are provided under a Creative Commons license for personal, non-commercial use only. Commercial reproduction, manufacturing, or resale of the cage or its components—either as-is or modified—is strictly prohibited.

Full Details for this project are covered in this video: https://youtu.be/ex9j-4XOfXo

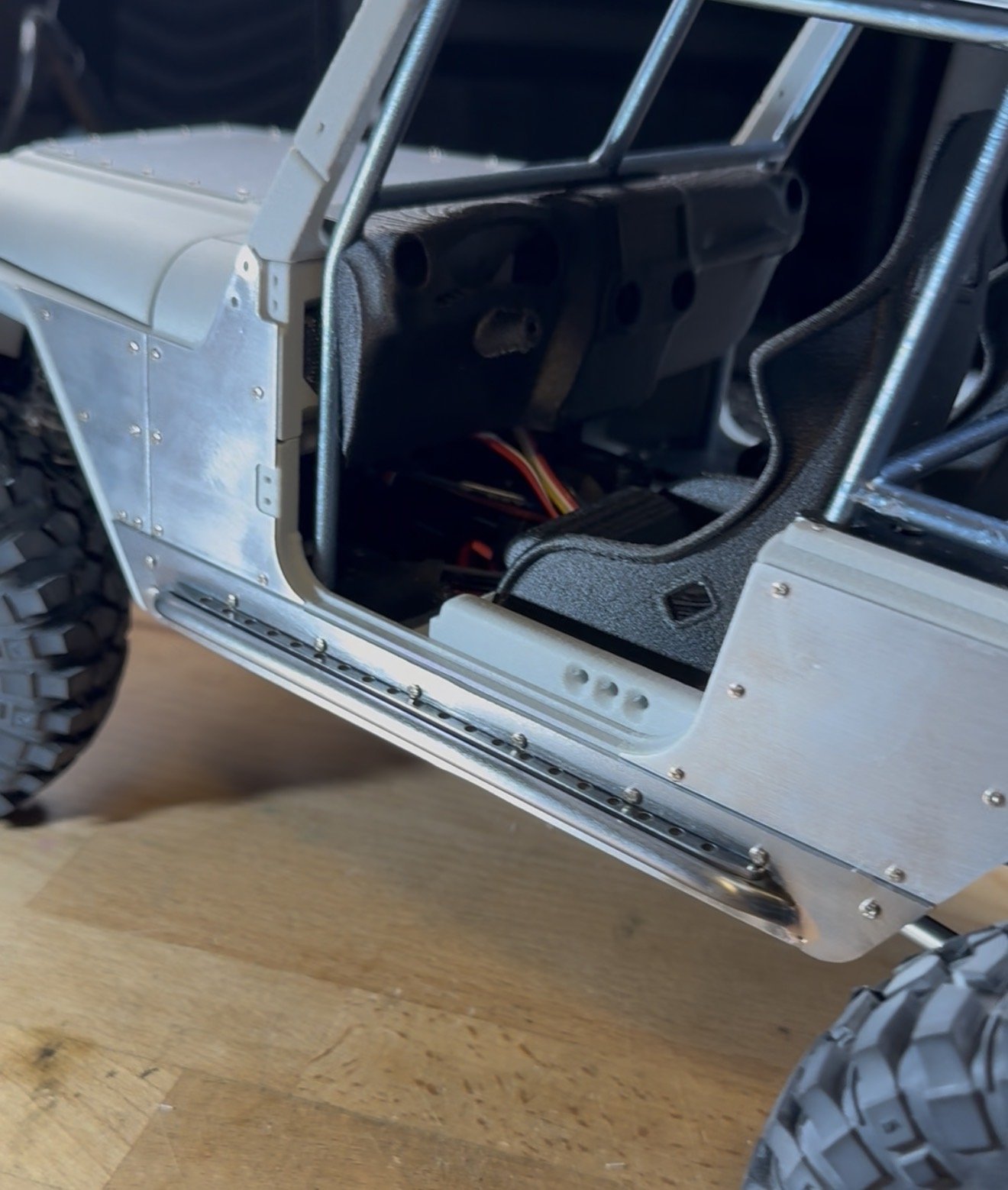

Project IJ Rock Slider STL Pack

Design and Fabrication Files for Steel Rock Sliders

Take your Project IJ build from printed prototype to full metal fabrication.
This STL pack includes all the 3D-printable fixtures, templates, and jigs needed to build the Project IJ rock sliders when used in combination with the laser-cut steel parts available through SendCutSend.

What’s Included

• STL files for:

  • Driver- and passenger-side fixture jigs to hold the tubes and plates during welding

  • Bend template to match the correct curvature of the 3/16" outer tube

What You’ll Need

To complete the full set of steel sliders, you’ll also need:

• Laser-cut steel parts — available through SendCutSend (https://marketplace.sendcutsend.com/p/CF271003/project-ij-sliders)

• 3/16" diameter steel tube or rod

• HD Tube Bender — the bend template and geometry are calibrated for my bender and will fit best when using it. (https://harleydesigns.com/store/hd-bender-for-316-tubing)

  🔧 It’s highly recommended to use the HD Tube Bender to ensure correct alignment and fitment.

Assembly Overview

1. Bend your tube using the provided template and the HD Tube Bender.

2. Place the bent tube and laser-cut plates in the printed jigs.

3. Tack-weld the assembly together.

4. Final-weld, clean, and finish as desired.

Important Notes

• This product provides digital STL files only.

• The steel parts must be ordered separately through SendCutSend.

• The STL files are intended exclusively for use with the Project IJ system.

• All designs © Harley Designs Inc.

• Built for Project IJ Body Set available HERE

Disclaimer

• Laser cut parts will only be offered from SendCutSend (and Brazin Scale for international customers where SendCutSend does not ship to) . I will not distribute the laser cut files to have them cut yourself. Make sure that you are able to purchase the parts from SendCutSend or you will need to contact brazin scale through their website: https://www.brazinscalerc.com/

• Not everyone is capable of the tasks required to finish this project, however there are no refunds on the service.

• I can share my methods but I can’t be sure your equipment will react the same as mine

• There is a facebook group created for these projects, there are many good resources in there of people who have completed the project. https://www.facebook.com/groups/harleydesigns

• Digital files sold have a non-commercial, personal use only license. You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used in any way whatsoever in which you charge money, collect fees, or receive any form of remuneration.
