Note: This product includes digital files only for the Project IJ Roll Cage build project. No physical chassis is included.

These files are provided under a Creative Commons license for personal, non-commercial use only. Commercial reproduction, manufacturing, or resale of the cage or its components—either as-is or modified—is strictly prohibited.

What we’re Building

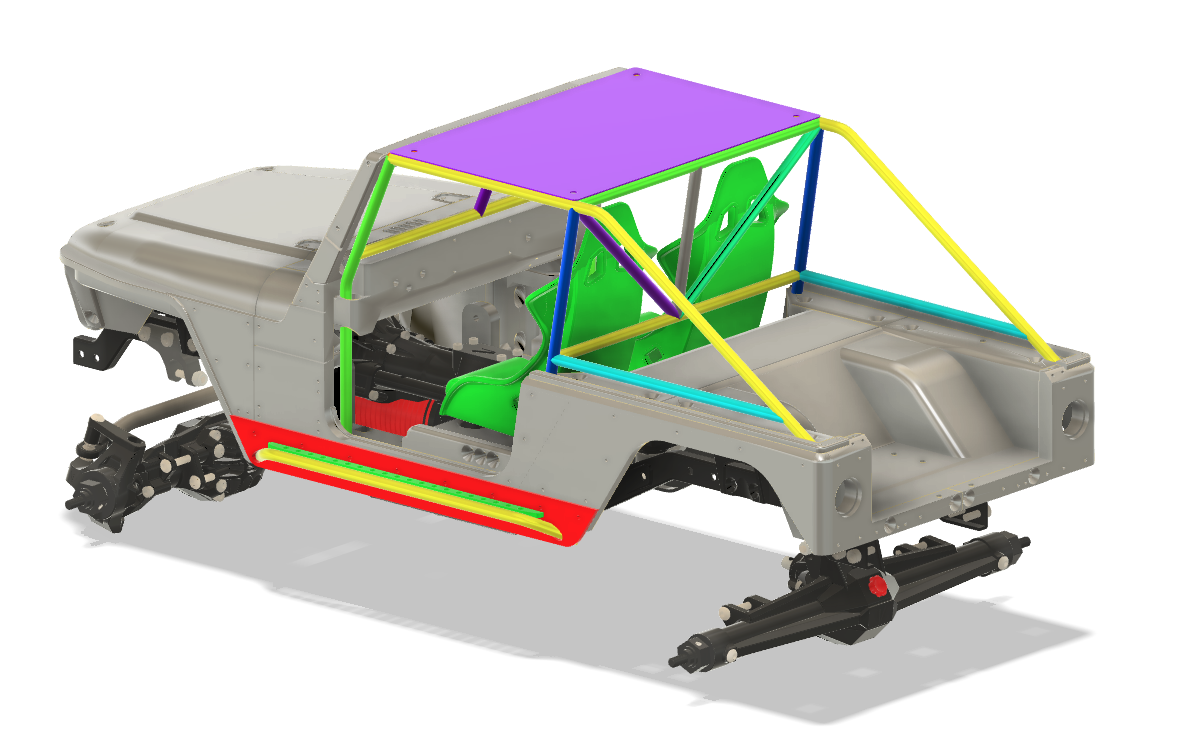

• Project IJ Roll Cage

• Built for Project IJ Body Set available HERE

What does this package provide (files)

• Tube/Bend Templates for every bar

• Fixtures for tube placement for 100% of tubes

• Link to purchase all laser cut parts from SendCutSend.com

• Dash Design

• Roof Skin brace for use with aluminum roof skin

• Printable Roof Skin

Tools Needed

• 3D Printer

• TIG Welder - Ideal

• Tube Bender (0.5” Radius)

  • Tubing Bender (Calibrated to the design, highly recommend):

    https://harleydesigns.com/store/hd-bender-for-316-tubing

    https://marketplace.sendcutsend.com/p/CW90C291/hd-bender-for-3-16-tubing

• Tool to cut tube

• Tool to notch tube

• M3 and M2.5 Taps

Supplies you’ll also need to buy:

• Tubing (3/16” DOM)

• Silicon Bronze filler (TIG Welding)

• PLA

Items From Send Cut Send

Steel Parts (required): https://marketplace.sendcutsend.com/p/C663J899/project-ij-cage-parts

Optional Send Cut Send Parts

Roof and Body Armor (side and hood for IJ body linked above): LINK COMING WITHIN 24hrs

If you want to use the hood armor, you need to have this hood option HERE

Tubing Bender (Highly recommend):

https://harleydesigns.com/store/hd-bender-for-316-tubing

https://marketplace.sendcutsend.com/p/CW90C291/hd-bender-for-3-16-tubing

Disclaimer

• Laser cut parts will only be offered from SendCutSend (and Brazin Scale for international customers where SendCutSend does not ship to) . I will not distribute the laser cut files to have them cut yourself. Make sure that you are able to purchase the parts from SendCutSend or you will need to contact brazin scale through their website: https://www.brazinscalerc.com/

• Not everyone is capable of the tasks required to finish this project, however there are no refunds on the service.

• I can share my methods but I can’t be sure your equipment will react the same as mine

• There is a facebook group created for these projects, there are many good resources in there of people who have completed the project. https://www.facebook.com/groups/harleydesigns

• Digital files sold have a non-commercial, personal use only license. You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used in any way whatsoever in which you charge money, collect fees, or receive any form of remuneration.
